Monitor Set-up for Casablanca S-3000 and S-6000

Previous | Next

Here is the monitor set-up for the Casablanca S-3000 and S-6000 editors

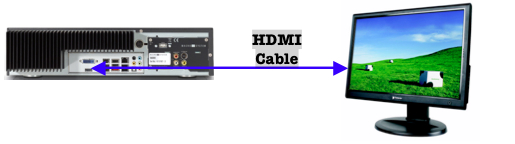

Single monitor set-up, this utilizes the HDMI connector/cable which carries both video & audio from editor to monitor
Casablanca HDMI connector

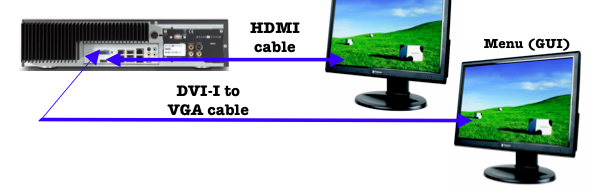

Dual monitor set-up - with GUI or menu on one monitor, video display on the other monitor.  This method requires the use of either a DVI-I to VGA adapter or a DVI-I to VGA Cable.  The DVI-I connector plugs into the blue DVI port on the back of the S3000/S6000. NOTE: at this time, the DVI-I>VGA adapter can be obtained at no additional cost from MacroSystem US (for NTSC customers who own the S3000 or S6000)
Casablanca Dual HDMI connector

For greater details using a Dual-Monitor set-up with the Casablanca S3000 or S6000, please see this article: Using Dual-Monitor Settings in Casablanca S3000 and S6000




Tips & Tutorials by the Casablanca Expert, Chet Davis
www.CasablancaExpert.com
